Persistent & Synced Configurations

Jötunn itself does not provide any implementations or abstractions for persisent configurations. We do however respect BepInEx.ConfigEntry's, their various properties, as well as their ConfigurationManager properties. Furthermore we have implemented a method of enforcing server side sync on specific configs via the ConfigurationManagerAttributes IsAdminOnly flag.

Note: IsAdminOnly is provided via JVL, not BepInEx.

Jötunn also provides a possibility to edit your configuration values via the "Mod Settings" menu added to the game. That only applies to configuration created with mods using Jötunn.

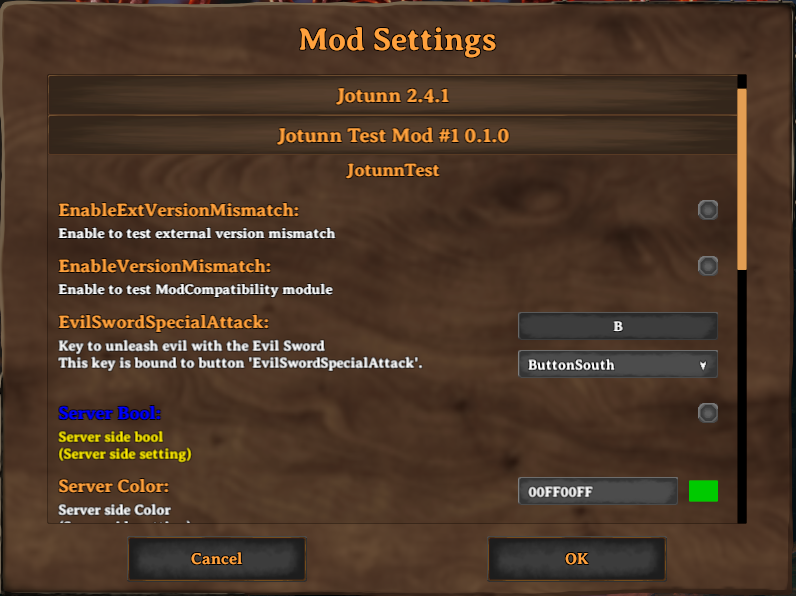

Config Manager UI

Note: The code snippets are taken from our example mod.

Binding and accessing configurations

Configurations are defined by "binding" a configuration. Refer to the BepInEx documentation about configurations to learn more about that.

// Create some sample configuration values
private void CreateConfigValues()
{
    Config.SaveOnConfigSet = true;

    // Add client config which can be edited in every local instance independently
    StringConfig = Config.Bind("Client config", "LocalString", "Some string", "Client side string");
    FloatConfig = Config.Bind("Client config", "LocalFloat", 0.5f,
        new ConfigDescription("Client side float with a value range", new AcceptableValueRange<float>(0f, 1f)));
    IntegerConfig = Config.Bind("Client config", "LocalInteger", 2,
        new ConfigDescription("Client side integer without a range"));
    BoolConfig = Config.Bind("Client config", "LocalBool", false,
        new ConfigDescription("Client side bool / checkbox"));

}

To access the configuration entries either use properties or cast the boxed value to the value type:

// Examples for reading and writing configuration values
private void ReadAndWriteConfigValues()
{
    // Reading configuration entry
    string readValue = StringConfig.Value;
    // or
    float readBoxedValue = (float)Config["Client config", "LocalFloat"].BoxedValue;

    // Writing configuration entry
    IntegerConfig.Value = 150;
    // or
    Config["Client config", "LocalBool"].BoxedValue = true;
}

Note: Setting the Value property behaves differently to setting the BoxedValue property: Setting Value will apply value ranges (defined in the ConfigurationManagerAttributes via AcceptableValueRange for example) while BoxedValue will have no checks.

Synced configurations

We can sync a client configuration with the server by setting the IsAdminOnly flag on the configuration like so:

// Create some sample configuration values to check server sync
private void CreateConfigValues()
{
    Config.SaveOnConfigSet = true;

    // Add server config which gets pushed to all clients connecting and can only be edited by admins
    // In local/single player games the player is always considered the admin
    Config.Bind("Server config", "StringValue1", "StringValue",
        new ConfigDescription("Server side string", null,
        new ConfigurationManagerAttributes { IsAdminOnly = true }));
    Config.Bind("Server config", "FloatValue1", 750f,
        new ConfigDescription("Server side float",
        new AcceptableValueRange<float>(0f, 1000f),
        new ConfigurationManagerAttributes { IsAdminOnly = true }));
    Config.Bind("Server config", "IntegerValue1", 200,
        new ConfigDescription("Server side integer", null,
        new ConfigurationManagerAttributes { IsAdminOnly = true }));
    Config.Bind("Server config", "BoolValue1", false,
        new ConfigDescription("Server side bool", null,
        new ConfigurationManagerAttributes { IsAdminOnly = true }));
}

This allows admins defined in the servers adminlist.txt to change the values on the fly, however clients without admin have no control over this configs. Every client connecting to that server using the same mod will receive the configuration values from the server. Local settings will be overriden by the servers values as long as the client is connected to that server.

Synced admin status

Upon connection to a server, Jötunn checks the admin status of the connecting player on that server, given that Jötunn is installed on both sides. The admin status of a player is determined by the adminlist.txt file of Valheim. If the player has admin status on a server, that player is able to change configuration values declared as IsAdminOnly as described before. If that status changes on the server because of changes on the adminlist.txt, Jötunn will automatically synchronize that change to any affected client. This unlocks or locks the players ability to change admin configuration. Mods using Jötunn can query the admin status locally and dont need to rely on a RPC call to check the players status on the connected server. The current admin status of a player can be read from SynchronizationManager.PlayerIsAdmin.

Note: When starting a local game the local player always gains admin status regardless of any given adminlist.txt values.

Note: At the start scene / main menu the player is admin per default. This means that admin only configuration can also be changed in the main menu but will only be active in a local game.

Additional config attributes

Besides the IsAdminOnly attribute, Jötunn provides several additional custom attributes for config entries:

EntryColor: Changes the default color of the config key in the settings GUI for that entry.
DescriptionColor: Changes the default color of the description text in the settings GUI for that entry.
Browsable: When set to false, that entry is not accessible through the settings GUI but will be created in the file and also synced, when IsAdminOnly is set to true.

private void CreateConfigValues()
{
    Config.SaveOnConfigSet = true;

    // Colored text configs
    Config.Bind("Client config", "ColoredValue", false,
        new ConfigDescription("Colored key and description text", null,
        new ConfigurationManagerAttributes { EntryColor = Color.blue, DescriptionColor = Color.yellow }));

    // Invisible configs
    Config.Bind("Client config", "InvisibleInt", 150,
        new ConfigDescription("Invisible int, testing browsable=false", null,
        new ConfigurationManagerAttributes() { Browsable = false }));
}

"Config synced" event

Jötunn provides an event in the SynchronizationManager you can subscribe to: SynchronizationManager.OnConfigurationSynchronized. It fires when configuration is synced from a server to the client. Upon connection there is always an initial sync event. If configuration is changed and distributed during a game session, the event is fired every time you receive or send configuration. This applies to server side configuration only (i.e. AdminOnly = true). To distinguish between the initial and recurring config sync use the ConfigurationSynchronizationEventArgs.

SynchronizationManager.OnConfigurationSynchronized += (obj, attr) =>
{
    if (attr.InitialSynchronization)
    {
        Jotunn.Logger.LogMessage("Initial Config sync event received");
    }
    else
    {
        Jotunn.Logger.LogMessage("Config sync event received");
    }
};

"Admin status changed" event

Similar to the event on configuration sync there is also an event when the admin status of a player on the server changed and got synced to the client: SynchronizationManager.OnAdminStatusChanged.

SynchronizationManager.OnAdminStatusChanged += () =>
{
    Jotunn.Logger.LogMessage($"Admin status sync event received: {(SynchronizationManager.Instance.PlayerIsAdmin ? "You're admin now" : "Downvoted, boy")}");
};

You can provide localized versions of the menu entry string. Please see our localization tutorial on how to do this.
